XimBox Project
« on: 10:09 AM - 08/31/14 »

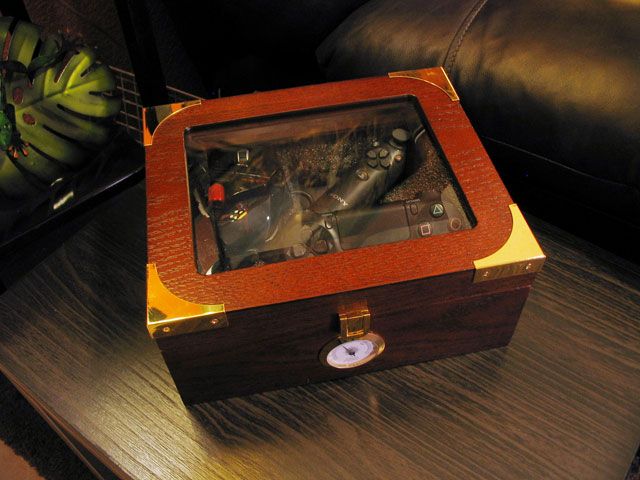

Here's a simple weekend project I thought I'd share.  I wanted a way to tame the cable mess that comes with the Xim4 for a living room environment.

I started with a Cable Matters active USB extension cable to run USB from my PS4 to the couch and keep it hidden in the baseboard cable channel.  You could use any kind of "decorative box", but the humidor I settled on is reasonably cheap, has quality hinges and won't warp.



Parts:
Box
Powered USB hub.  I found the one I'm using on Amazon, it's sold under many different brand names.  It's got a nice aluminum housing and a quality "Omron" style on/off switch.
Kaizen Foam.  It's used for organizing toolboxes by cutting around the shape of tools and plucking out the foam to form a custom fit.
Short cables.  Sourced from Monoprice.



Tools:

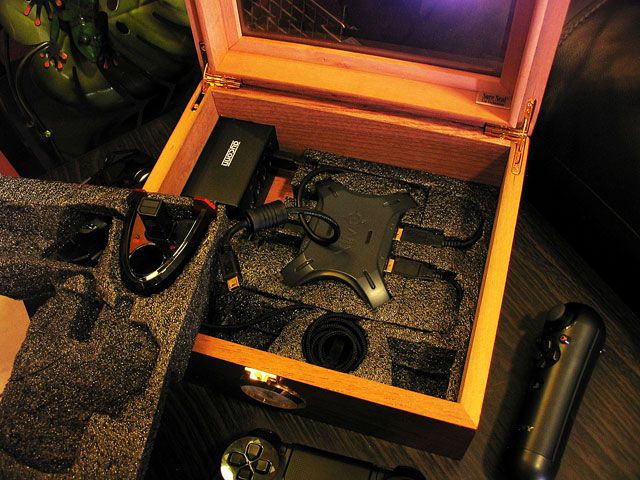

Drill, Jigsaw, sandpaper.  I cut a simple square hole for the hub so the power and cable-in ports are flush with the outside of the box.  The on/off button is also on the back of the unit.  A little black Sharpie or stain pen on the raw wood helps the hub blend into the rear of the box.  Not that you'd normally see it.
X-acto and utility knife, steel ruler and cutting board for shaping the foam.

It took a couple of tries to get everything positioned where it would work.  I wished more than once I'd opted for something larger.

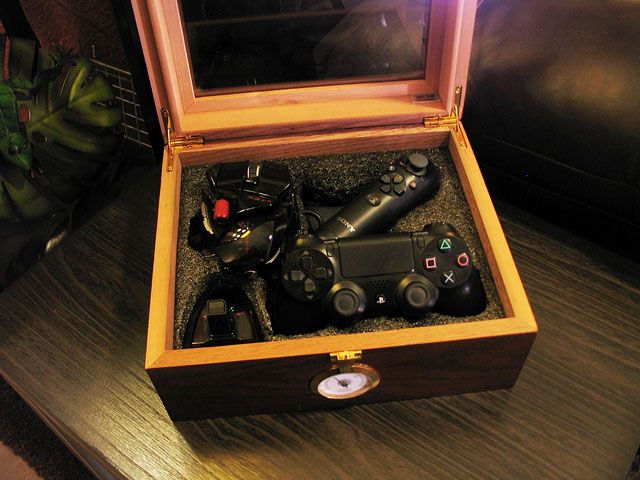

Now everything is within easy reach of "Sheldon's Spot" on the couch.  I just need Destiny to drop and I'll be a happy camper.

I plan on adding a cheap USB stereo sound card frenched into the foam for a chat headset.  And maybe a USB powered fan on the rear of the box.
